Case Study: Custom 3TPD RO Water System for a School in Kenya
Location: Rural Community, Kenya
Installed by: Local technicians (remote support by our team)
System Type: Containerized Reverse Osmosis (RO)
Capacity: 3,000 Liters per day (3TPD)
—
The Challenge
A small school in rural Kenya was struggling with unsafe drinking water. Their only source was a hand-pumped well with high turbidity and bacteria. Students often fell sick, and the school had to buy expensive bottled water for cooking and drinking.
They needed a system that was:
• Affordable to run
• Easy to maintain (no full-time engineer)
• Compact and robust for hot, dusty conditions
• Capable of producing clean, safe drinking water daily
—
Our Solution

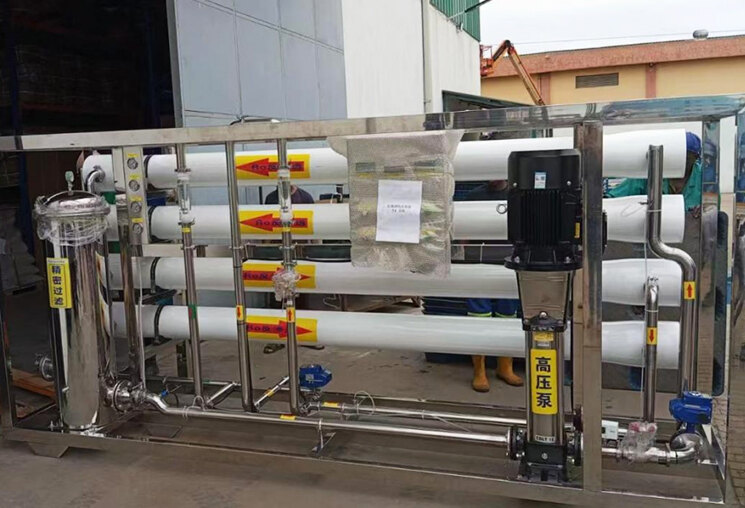

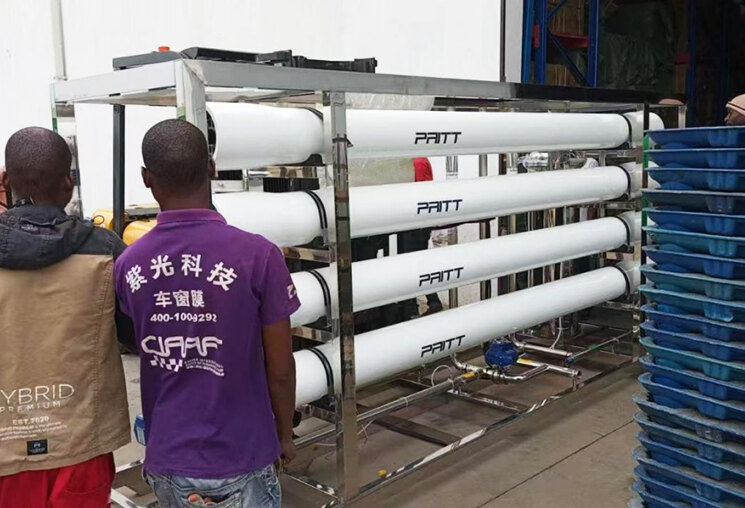

We designed a custom 3TPD reverse osmosis system in a powder-coated steel frame, pre-assembled and tested before shipping.
System included:
Component Specification
Raw water pump 0.55kW, low energy
Sediment filter 20-inch, 5µm
Carbon filter Removes chlorine & taste
RO membrane 4040 industrial grade (1 unit)
Membrane housing FRP, clamp type (easy to open)
Post carbon polisher Improves taste
UV sterilizer Final disinfection
Control panel Simple push-button operation
Extra touches for remote support:
• Color-coded pipes and numbered connections
• Spare belt, O-rings, and one extra membrane
• Printed manual with pictures (no technical jargon)
• WhatsApp video support available
—
Shipping & Installation
The system was shipped from our warehouse to Mombasa port, then trucked to the school.
Installation was done by local technicians guided by our team via video calls:
• 2 days for unpacking and connection
• 1 day for flushing and startup
• 0.5 day for operator training (the school cook learned it in 30 minutes)
No special tools or advanced skills were needed.
—
The Customer’s Reaction
When the system produced its first batch of clean water, the head teacher called us immediately. Here is what he said (translated from Swahili):
“We cannot believe it. The water is so clear and sweet. Our children are drinking directly from the tap and no one has gotten sick. You have changed our school. Thank you, thank you, thank you.”
He later sent us a video of students lining up to fill their bottles — laughing and drinking without fear.
He was truly happy. And so were we.
—
Results After 2 Months
Parameter Before After
Water source Hand-pumped well Treated RO water
Turbidity High (muddy) 0 NTU
Bacteria Present (untreated) None (UV treated)
Student sickness Monthly cases Zero
Bottled water cost ~150 USD/month 0
Maintenance so far: The school cook has changed the sediment filter twice (every 3 weeks) as guided. Everything works perfectly.
—
Why This Project Matters to Us
This 3TPD system is small in capacity but huge in impact.
It proves that:
• Customized water treatment is possible for any budget
• Remote support works when the system is well-designed
• Clean water changes lives — not just in factories, but in communities
We are proud to have been part of this project.
—
