order number |
Device Name |
specifications |
number |
material quality |
|
一 |
raw water system |
|
|
|
|
1 |
Pretreatment Booster pump |
Model: 8-30 Flow rate: 8m3/h Lift: 30m Power:1.1W/unit |
1 unit |
stainless steel |
|
二 |
pretreatment system |
|
|
|
|
1 |
quartz sand filter |
|
|
|
|
|
canister |
Ø500 |
1 unit |
TRP |
|
Center pipe, upper and lower water distributors |
Supporting facilities |
1 set |
UPVC |
|
|
Top mounted automatic recoil head |
5T/H, LCD display, digital programming |
1 unit |
Runxin |
|
|
filter material |
2-4，4-8 |
1 set |
Refined granite filter material |
|
|
pressure gage |
1.0MPA |
1 pcs |
Stainless steel |
|
|
Pipe valve components |
Ø40 |
1 set |
UPVC |
|
|
2 |
Activated carbon filter |
|
|
|
|
|
canister |
Ø500 |
1 unit |
TRP |
|
Center pipe, upper and lower water distributors |
Supporting facilities |
1 set |
UPVC |
|
|
Top mounted automatic recoil head |
5T/H, LCD display, digital programming |
1 unit |
Runxin |
|
|
filter material |
Special for water treatment |
1 set |
Fruit shell activated carbon filter material |
|
|
pressure gage |
1.0MPA |
1 pcs |
Stainless steel |
|
|
Pipe valve components |
Ø40 |
1 set |
UPVC |
|
|
3 |

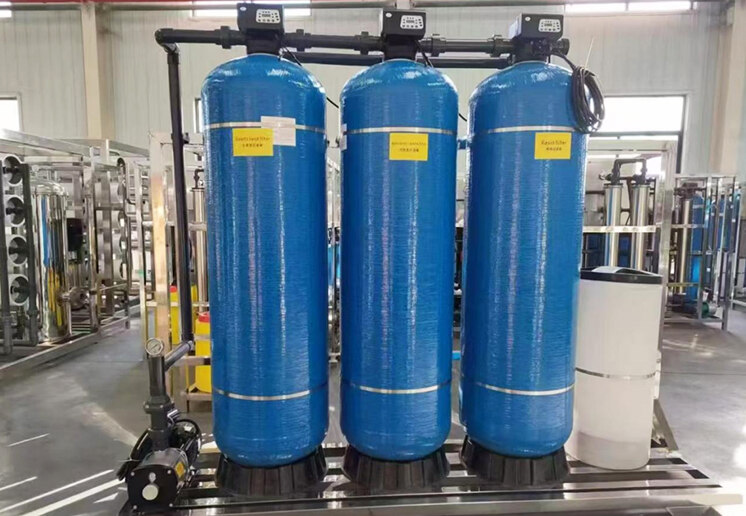

Resin softening filter |
|
|
|
|
|
canister |
Ø500 |
1 unit |
TRP |
|
Center pipe, upper and lower water distributors |
Supporting facilities |
1 set |
UPVC |
|
|
Automatic regeneration control machine head |
5T/H, LCD display, digital programming |
1 unit |
Runxin |
|
|
filter material |
cation exchange |
1 set |
resin |
|
|
Salt box |
100L |
1 unit |
PE |
|
|
pressure gage |
1.0MPA |
1 pcs |
stainless steel |
|
|
Pipe valve components |
Ø40 |
1 set |
UPVC |
|
|
4 |
Security filter |
5-core 20 inch |
1 unit |
stainless steel |
|
|
Precision filter element |
5 microns |
5pieces |
PPM |
|
pressure gage |
1.0MPA |
1 pcs |
stainless steel |
|
|
Pipe valve components |
Ø40 |
1 set |
UPVC |
|
|
三 |
RO system |
|
|
|
|
1 |
Booster pump |
Model: 4-160 Flow rate: 4m3/h Lift: 155m Power: 3KW/set |
1 unit |
stainless steel |
|
2 |
RO reverse osmosis membrane |
8040 |
3 pieces |
Dow |
|
3 |
High pressure membrane housing |
8040 20MPa |
3 pieces |
glass fiber reinforced plastics |
|
4 |
Pipe valve components |
Ø40 |
1 set |
UPVC |
|
四 |
Instrumentation and control system |
|
|
|
|
1 |
instrumented system |
|
|
|
|
|
Produced water conductivity meter |
MP-230 |
1 unit |
combination |
|
|
Low voltage protection switch |
60A |
1 pcs |
combination |
|
|
High voltage protection switch |
60A |
1 pcs |
combination |
|
|
Water inlet solenoid valve |
Ø40 |
1 pcs |
combination |
|
|
Flushing solenoid valve |
Ø32 |
1 pcs |
combination |
|
|
Concentrated water regulating valve |
Ø32 |
1 pcs |
combination |
|
|
Purified water flow meter |
0-10T |
1 pcs |
combination |
|
|
Concentrated water flow meter |
0-10T |
1 pcs |
combination |
|
|
pressure gage |
0-1.0MPa |
4 pcs |
stainless steel |
|
2 |
Automatic control electric control cabinet |
Chint Electric Appliances |
1 unit |
Stainless steel cabinet body |
|
五 |
Racks, pipe valves, wires and cables |
|
|
|
|
1 |
rack |
Supporting facilities |
1 unit |
stainless steel |
|
2 |
Equipment pipes and valves |
Supporting facilities |
1 set |
UPVC |
|
六 |
UV |
|
|
|
|
2 |
UV |
55W |
1 set |
stainless steel |
