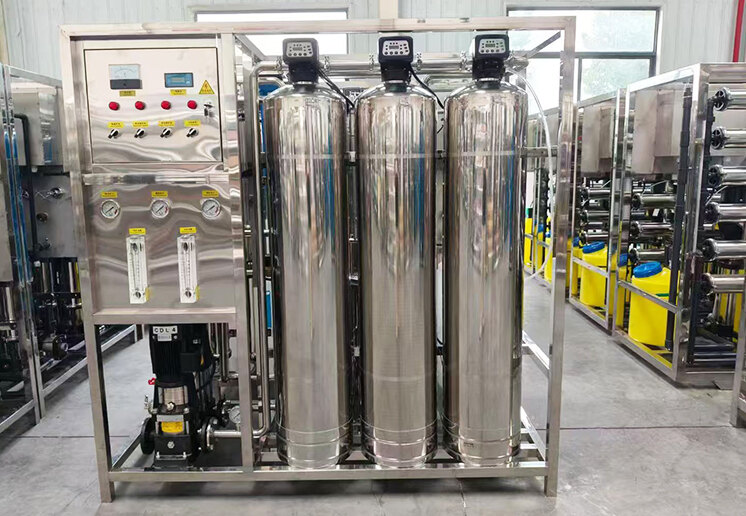

1T Water Purifier RO System
1T Water Purifier RO System

1T Water Purifier RO System

Description:

1. One-ton reverse osmosis equipment.

2. Product name: 6000GPD reverse osmosis equipment.

3. Product model: BP - RO - 6000GPD - B3.

4. Applicable power supply: 220V/380V/50HZ.

5. Water production flow: 1000L/H.

6. Equipment power: 2.5KW.

7. Inlet water pressure: 0.2 - 0.4MPa.

8. Operating pressure: 0.8 - 1.0MPa.

9. Inlet and outlet pipe diameters: Inlet: DN25; Concentrated water and product water: DN20.

10. Control mode: Fully automatic.

11. Flushing mode: Fully automatic.

12. Product dimensions: 160*65*163CM (length * width * height).

13. Product net weight: 220KG.

14. Applicable temperature: 5 - 40°C.

Configuration Introduction

1. Raw water tank - Quartz sand - Activated carbon - Softening resin (or scale inhibition system) - Precision filter - Reverse osmosis membrane - (Ultraviolet sterilization can be added) - Pure water tank.

2. Standard configuration includes fiberglass tanks, Runxin automatic control valves, 7 - inch touch controllers, stainless - steel membrane housings, SHIMGE water pumps, low - voltage protectors, stainless - steel precision filters, automatic flushing valves, U - PVC pipes, and universal wheels. The equipment is equipped with 4 pieces of Vontron- Eco 4040 RO membranes, blue fiberglass tanks + automatic valve heads, and a fully automatic system, which is convenient to operate and easier to install.

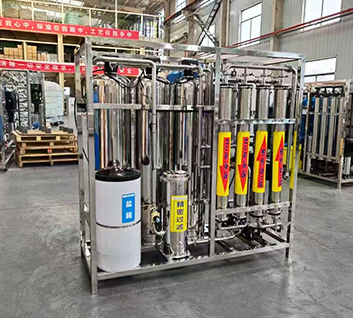

  • 1T-Water-Purifier-RO-System-03

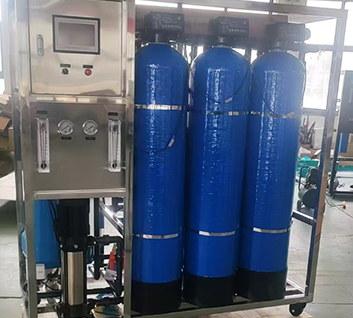

  • 1T-Water-Purifier-RO-System-04

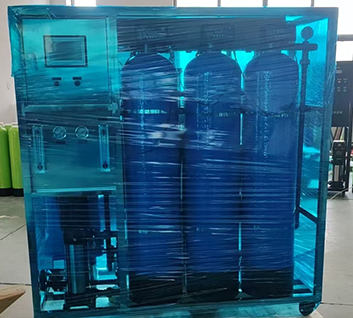

  • 1T-Water-Purifier-RO-System-05

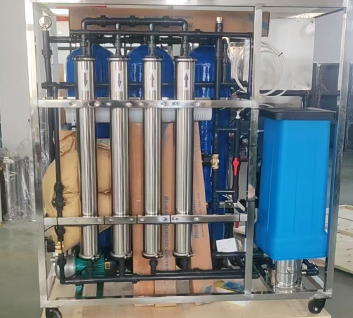

  • 1T-Water-Purifier-RO-System-06
